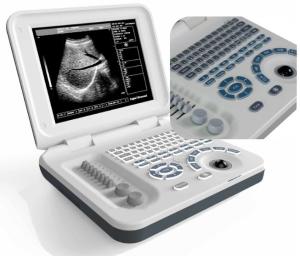

Multifunction Portable Human Ultrasound Machine DRF Real Time ISO

Name: Multifunction Portable Human Ultrasound Machine DRF Real Time ISO
Brand: Xianfeng
Price: 1 USD

MOQ : 5pcs

Brand Name : Xianfeng

Name : Portable USG Machine

Gray scale : 256 levels

Certification : CE, FDA, ISO

Dynamic range : 0~120db adjustable

USB port : 4

Display : 10.4 Inch LED Screen

Storage : 256 images

Battery : 1.5 Hours

Contact Now

Multipurpose Equine Portable Ultrasound Machine DRF RDA

Functional Characteristics

3.5 MHz electronic convex array probe, real-time dynamic aperture imaging (RDA); full digital dynamic receive focusing (DRF);

frequency conversion; 8 segments TGC; dynamic digital filtering; dynamic digital filtering;

image enhancement;

display modes as B, B/B, 4B, B+M and M, image multiplying factors of ×0.8, ×1.0, ×1.2, × 1.5,×1 .8, ×2.0 under the B mode;

256 images available after diagnosis of real-time playback or by image viewer, 128 a large memory and offers permanent storage, cine loop in real time;

Multifunction Portable Human Ultrasound Machine DRF Real Time ISO

Display mode	B;B/B;4B;B+M;M
Display size	10.4inch LED displayer
Image multiplying factor	3.5MHz/R60 convex array probe: x0.8;x1.0,x1.2,x1.5,x1.8, x2.0( 6 modes) x0.8;x1.0(display penetration depth)
E-zoom	Magnify 2 times of real time image
Dynamic range	0~120db adjustable
Focus position	Dynamic electron focusing
Image proessing	8 γcorrections, Point correlation, Frame correlation, Line correlation, Digital filting,Digital edge enhancement and pseudo color processing According to the user's pattern style preference, the parameter will be set up automatically and saved ,Boot default this parameter. This default of parameter can aslo be modified in the menue.
Gray scale	256 levels
Frequency conversion	2.5MHz/3.0MHz/3.5MHz/4.0MHz/5.0Mhz 5 periods of frequency conversion Frequency range applies 5.5MHz/6.0MHz/6.5MHz/7.0MHz/7.5MHz can match high frequency probe
Measuring function	Distance, circumference/area(method of ellipse,method of loci) ,volume,heart rate, gestational weeks, expected date of confinement and fetus weight,etc.
Annotation function	Hospital name;patient’s name, age and gender; Body marks (with probe’s position);Full-screen character annotation;Real-time clock display
Puncture guide	3.5MHz convex array probe can display punture guide in B mode
Gain control	8 segments TGC and overall gain can be adjusted respectively
Image polarity	Left and right flip; up and down flip
Capacity cine loop	Real time display 256 consecutive images which are moemorized successively
Image playback	Series playback or check one by one
Standard configuration	Ul

Multifunction Portable Human Ultrasound Machine DRF Real Time ISO
